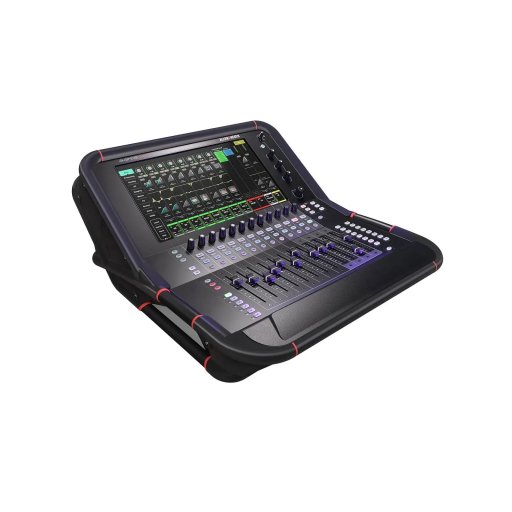

Allen & Heath Avantis Solo Ultra 96 Channel Mixing Console

The Avantis Solo Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses.

With our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next-generation technology in a stand-alone 96 channel / 56 configurable bus console, with a Full HD touchscreen, a super-flexible workflow with Continuity UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full-metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers.

Key Features:

• 56 buses
• 96 kHz XCVI FPGA core with very low latency (0.7 ms)
• Freely configurable mix bus architecture
• Very sturdy, solid metal housing
• User interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow
• 12 stereo FX returns
• Eight RackUltra FX slots
• 16 DCAs
• 15.6″ full HD displays with capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 72 fader strips (12 faders, 6 layers) with optional master section
• SLink port for connection to remote I/O extensions and the ME Personal Mixing System
• Inputs: Six analogue XLR, 1 stereo AES
• Output: Six analouge XLR, 1 stereo AES
• 2 I/O slots for 128 x 128 at 96kHz each – for optional cards including Dante, MADI and gigaACE
• User-configurable rotary controls
• 18 assignable SoftKeys
• Comprehensive metering with multi-point peak detection
• USB stereo recording and playback
• BNC Word Clock

Specifications:

• Dimensions (H x W x D): 269 x 546 x 627 mm
• Weight: 17.5 kg
• Includes dPack
