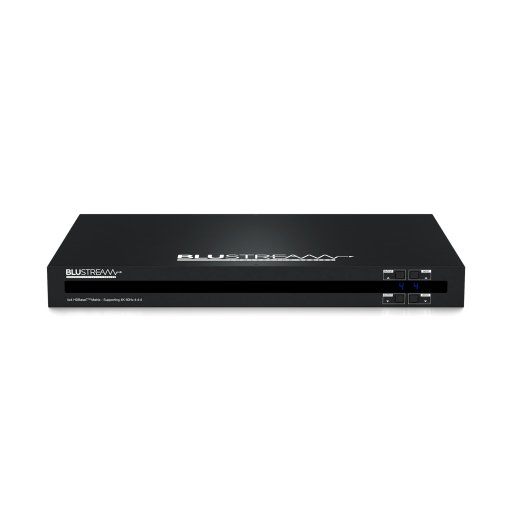

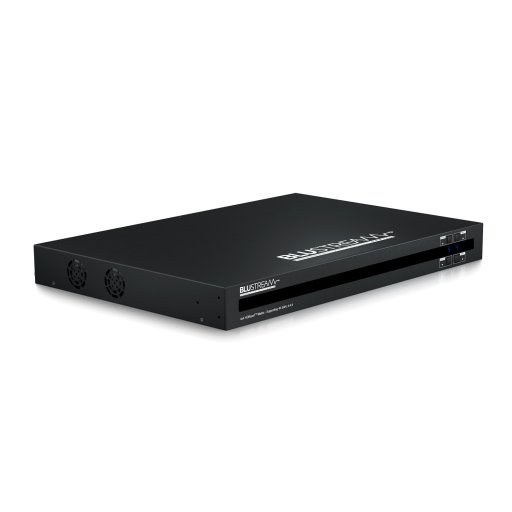

Blustream C44CS-KIT
Manufacturer: Blustream
Our Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.
The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.
The C44CS-KIT is supplied with 4 x RX70CSL receivers.
Usually Ships in 1-3 Working Days
£1,330.87
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
• Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19” rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant
*CSC feature compatible with RX70CSL only

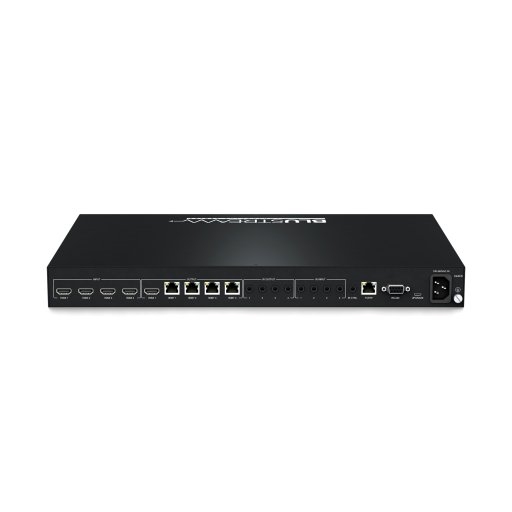

C44CS - Matrix:
• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors
• TCP/IP Control: 1 x RJ45, female
• RS-232 Serial Ports: 1 x DB-9, female
• IR Input Ports: 5 x 3.5mm stereo jack
• IR Output Ports: 4 x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x H x D): 437mm x 44mm x 300mm (without feet)
RX70CSL Receiver:
• Video Input Connectors: 1 x HDBaseT™ RJ45 connectors
• Video Output Connectors: 1 x HDMI Type A
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Casing Dimensions (W x H x D): 85mm x 24mm x 120mm
• Mounting Wings: Supplied
C44CS-KIT:
• Power Supply: Internal 100-240V AC
• HDBT Power Output: 12V DC 0.8A per port
• Shipping Weight: 6.0kg
• Operating Temperature: 23°F to 122°F (-5°C to +50°C)
• Storage Temperature: -13°F to 158°F (-25°C to +70°C
