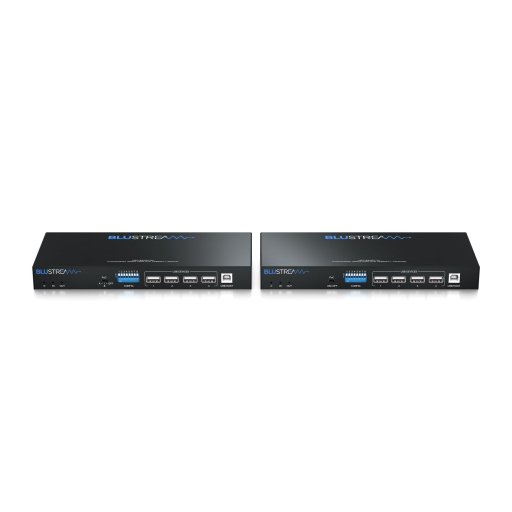

Blustream HEX18GARC-KIT
Manufacturer: Blustream
The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.
The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gbps Ethernet pass through.
Usually Ships in 1-3 Working Days
£671.58
• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+
• Supports HDMI video distribution up to 100m*
• Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
• Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Features USB 2.0 for KVM with a combined speed of up to 350Mbps
• Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
* Transmission distance is subject to video format, cable type and installation environment.
* The HDBaseT3 specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.
Specifications:
HEX18GARC-TX:
• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
• Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)
• Ethernet port: 1 x RJ45 connector
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
• IR Input ports: 1 x 3.5mm stereo jack
• IR Output ports: 1 x 3.5mm mono jack
• CTRL: 8-PIN DIP switch
HEX18GARC-RX:
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
• Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)
• Audio Input Connectors: 1 x Optical (S/PDIF)
• Ethernet port: 1 x RJ45 connector
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
• IR Input ports: 1 x 3.5mm stereo jack
• IR Output ports: 1 x 3.5mm mono jack
• CTRL: 8-PIN DIP switch
• Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)
• Shipping Weight (kit): 1.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting kits included
• Power Supply: 1 x 24V/1.25A DC
