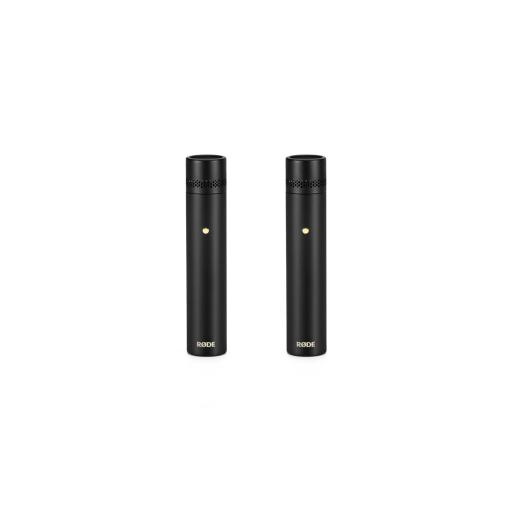

RØDE TF-5 Matched Pair Condenser Cardoid Microphones

Manufacturer: Rode

Mediaspec Code: DIG23969

Manufacturer Code: TF-5

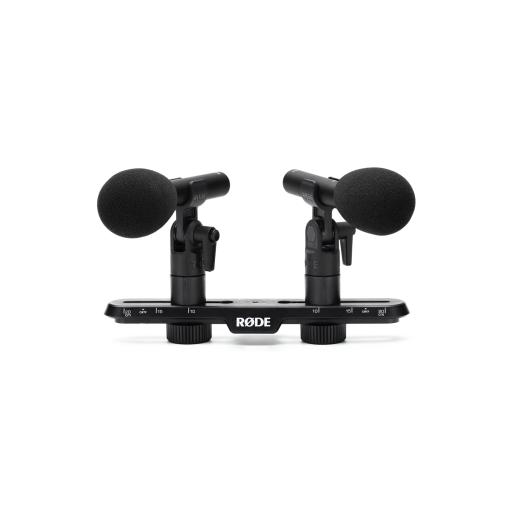

Includes:

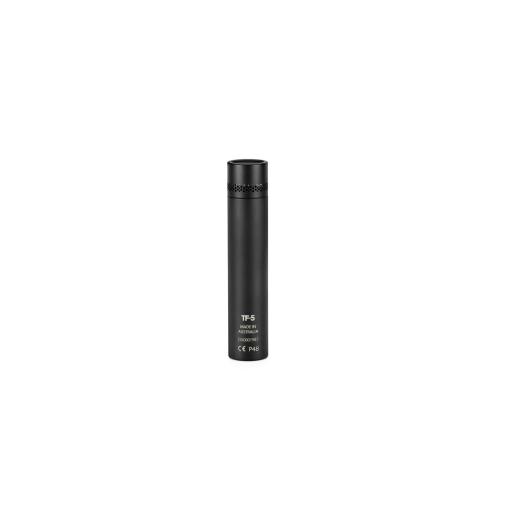

2 x TF-5 Microphones

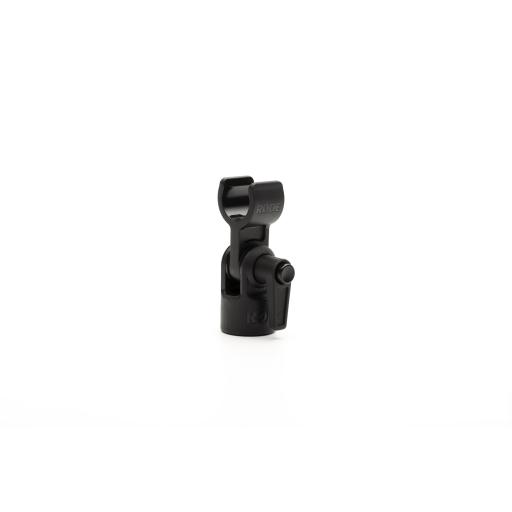

1 x Clips

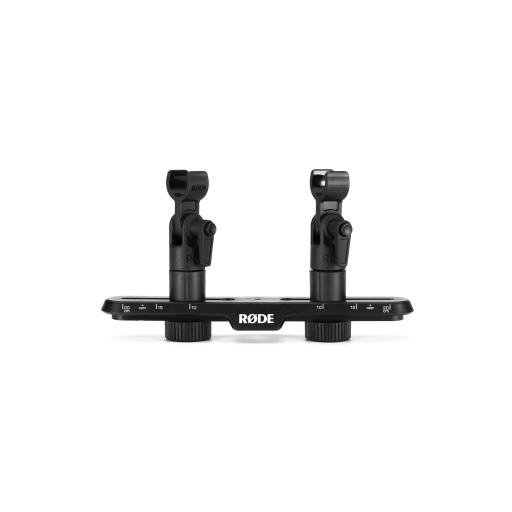

1 x Stereo Bar

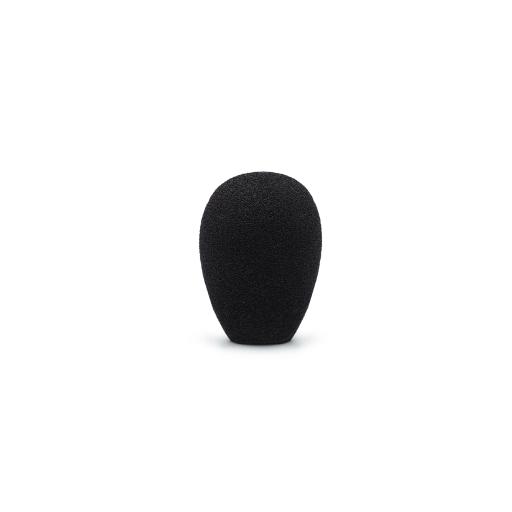

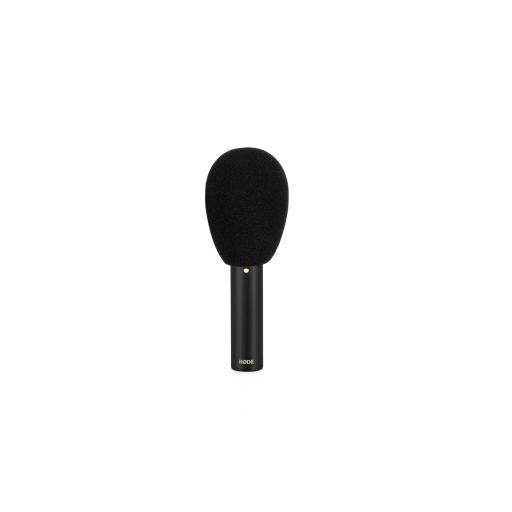

2 x Windshield
1 x Handbook

In Stock

£1,295.00

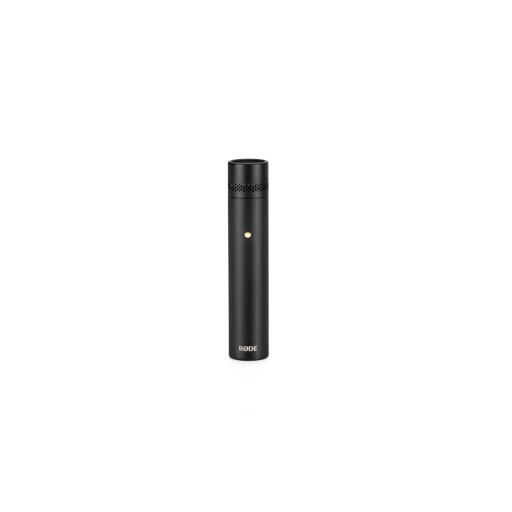

The RØDE TF-5 is a prestige small-diaphragm cardioid condenser microphone designed in collaboration with legendary classical recording engineer and producer Tony Faulkner. Harnessing new capsule technology precision engineered at RØDE’s state-of-the-art facility, it delivers a natural, finely detailed audio image suitable for the most demanding recording applications.
RØDE TF-5 key features:

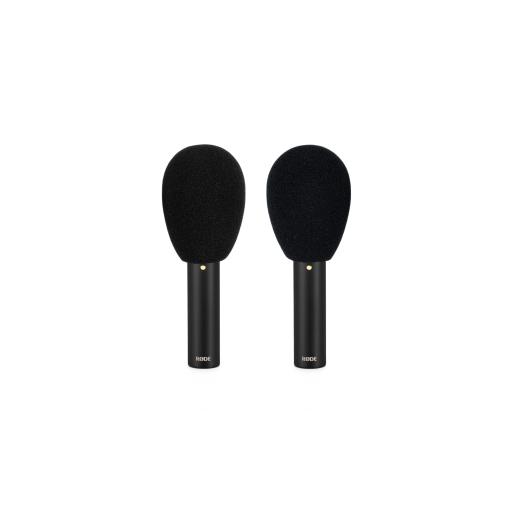

Matched pair small diaphragm condenser cardioid microphones.
Imagined and designed in collaboration with Tony Faulkner and manufactured at RØDE’s state-of-the-art facility in Sydney.
Brand new capsule, precision-engineered to sub-micron tolerances, delivers breathtaking sonic transparency.
Exceptionally low noise floor (14dbA), making the TF-5 suitable for the most critical recordings.

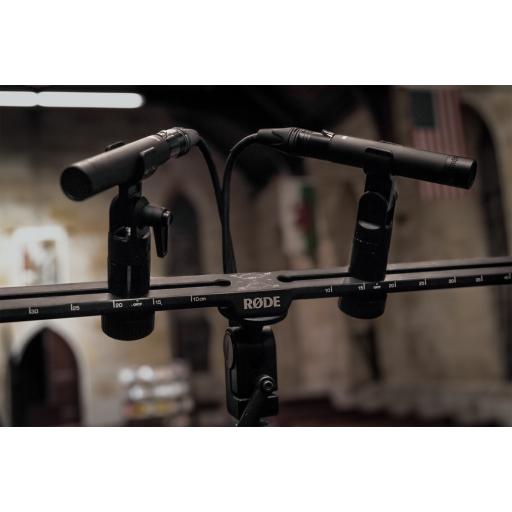

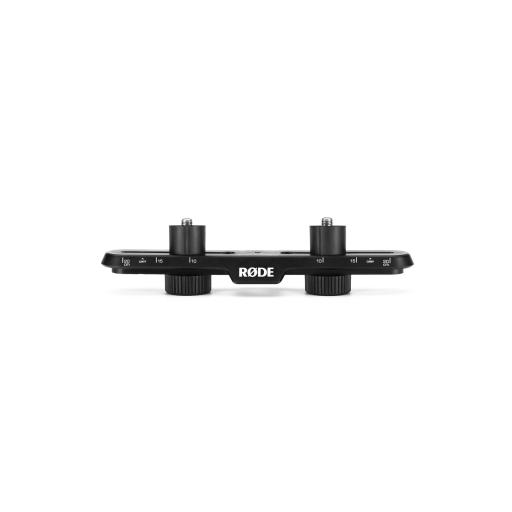

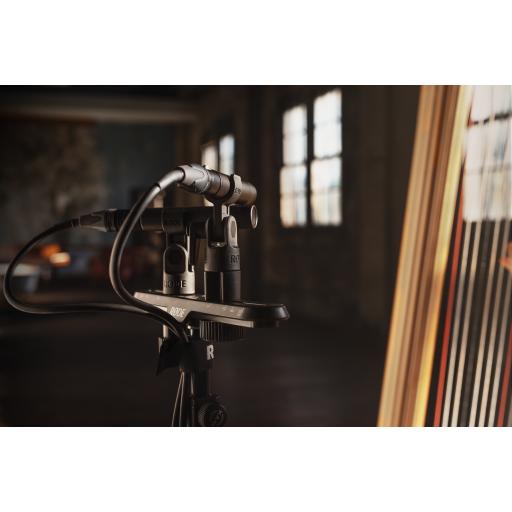

Includes high-quality RØDE stereo bar for easy rigging as a stereo pair.

Acoustics & Electrical Specifications:

Acoustic Principle Externally Biased:Condenser
Active Electronics: JFET impedance converter with bipolar output buffer
Polar Pattern: Cardioid
Frequency Response: 20Hz - 20kHz (30 Hz - 20 kHz ±3dB)
Output Impedance: 63Ω
Signal to noise Ratio: 80 dB
Equivalent Noise: 14 dB SPL (A-weighted, as per IEC651)
Input SPL @ 1%THD: 120 dB SPL (1kHz @ 1% THD, 600Ω load)
Sensitivity: -29 dB re. 1 Volt/Pascal Or Better (35 mV @ 94dB SPL @ 1kHz)
Dynamic Range: 112.6 dB (1kHz @ Max SPL)
Power Requirements: 7mA @ 48V phantom power
Weight: 114g (single microphone)
Dimensions: Length 98.7mm / Diameter 20mm
