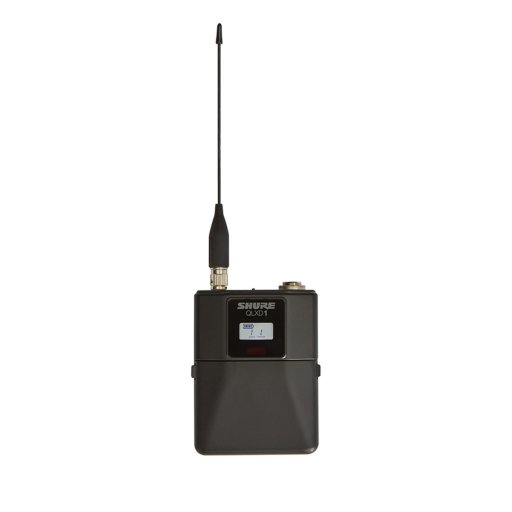

Shure QLX-D Bodypack Transmitter

The QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

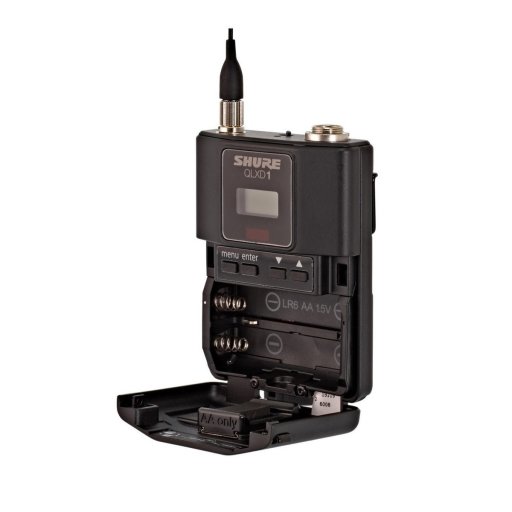

Your QLX-D transmitter provides a generous 9 hours of continuous use from the pair of included AA batteries.

Or take advantage of Shure's revolutionary rechargeable technology. The optional SB900 lithium ion battery provides 10 hours of run time. And you can see exactly what's left in hours and minutes on the transmitter. There are a variety of charging options too: an eight-bay charger, a single-battery USB charger, and the dual docking station. Which allows transmitter charging without removing the battery, thanks to the external charging contacts. It only takes 3 hours to reach full capacity. Or in emergencies, a 15 minute quick-charge provides a vital hour of use.

Top tier encryption

Keep your presentation confidential with AES-256 Encryption. When engaged, it establishes a private one-to-one relationship between transmitter and receiver. For an impenetrable wireless transmission. Approved by the best cryptographers in the world, AES-256 is the highest standard of encryption available. So you can share sensitive information, with total peace of mind.

Pro-grade construction

Built to survive the demanding nature of professional touring. QLX-D transmitters and receivers are constructed with a robust, yet lightweight aluminium. Chosen to keep the high-caliber components safe from detrimental wear and tear. And with the included rackmount kit, you can integrate your new system straight into your current rig. For safe transportation from venue to venue.

Included In The Box

• 1 x QLXD1 Bodypack Transmitter
• 1 x Zipped Storage Pouch
• 2 x AA Batteries

Features

QLXD1 Bodypack Transmitter

• Clear, uninterrupted signal over 100 meter range
• Up to 9 hours of continuous use with 2 AA batteries
• Optional rechargeable lithium ion battery provides 10 hours of continuous use and displays runtime in hours and minutes

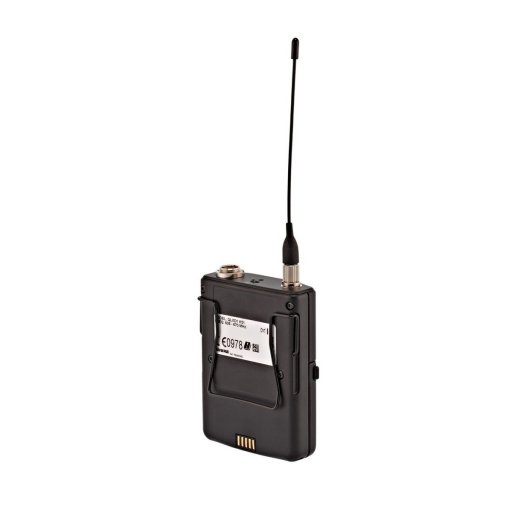

• External charging contacts for docked charging
• IR sync pairs transmitter with receiver at the push of a button
• Exceptionally detailed 24-Bit / 48kHz digital audio quality
• Over 120 dB of dynamic range - no transmitter gain adjustments needed
• AES 256-bit encryption for ultra-secure transmission of confidential information
• Backlit LCD screen with easy to navigate menu and controls
• Selectable display shows group/channel, frequency, or battery runtime
• Control lock option avoids any accidental changes
• 4-Pin male mini connector (TA4M)
• Detachable ¼ wave antenna
• Tour proof metal construction

Specifications

QLXD1 Bodypack Transmitter

• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
• Battery Runtime:Shure SB900A: up to 10 hours, AA: up to 9 hours
• Dimensions: 86 × 65 × 23 mm, H × W × D
• Weight: 138 g, without batteries
• Housing: > Cast aluminium
• Audio Input:
  • Connection: 4-pin male mini connector (TA4M)
  • Configuration: Unbalanced
  • Impedance: 1 MΩ
  • Maximum Input Level: 8.5 dBV (7.5 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): −120 dBV, A-weighted, typical
• RF Output:
  • Connector: SMA
  • Antenna Type: 1/4 wave
  • Impedance: 50 Ω
  • Occupied Bandwidth: < 200 kHz
  • Modulation Type: Shure proprietary digital
  • Power: 1 mW or 10 mW
